Mitsubishi AJ65SBT2B-64AD

The AJ65SBT2B-64AD is a high-performance CC-Link remote equipment station analog input module manufactured by Mitsubishi Electric Co., Ltd., which is mainly used for analog signal acquisition and processing in industrial automation control systems. The following are the main product features and technical parameters of the module:

1. Basic specifications
- Brand: Mitsubishi
- Model Number: AJ65SBT2B-64AD
- Type: Analog input module
- Communication protocol: CC-Link (Remote Equipment Station)
- Number of occupied stations: 1 station
- Number of input channels: 4 channels (configurable voltage or current input)

2. Input signal specifications
- Voltage Input Range:
- DC -10V ~ 10V (Input impedance: 1MΩ)
- Selectable range: 0~5V, 1~5V, user-defined range (e.g. -5V~5V)
- Current Input Range:
- DC 0~20mA (Input impedance: 250Ω)
- Selectable range: 4~20mA
-Resolution:
- Voltage mode: 0.3125mV (0~5V), 0.625mV (-10V~10V)
- Current Mode: 1.25μA (0~20mA)

3. Performance parameters
- Accuracy: ±0.2%(Ambient temperature 0~55°C)
- Conversion speed: 200μs/channel
- Digital output range: -16,384 ~ 16,383
- Insulation:
- Communication system and analog input: opto-coupled isolation
- Power system isolated from analog input: transformer
- Withstand voltage: AC 500V for 1 minute (between power supply/communication system and analog input)

4. Power & Connection
- Power supply voltage: DC 24V (allowable range: 20.4~28.8V)
- Power consumption: 0.12A (at 24VDC)
- External wiring:
- Communication & Power: 7-point terminal strip (M3 screw)
- Analog input: 18-point terminal strip (M3 screw)

5. Adaptability to machinery and environment
- Size: 50mm × 122mm × 54mm
- Weight: 0.25kg
- Operating temperature: 0~55°C
- Storage temperature: -20~75°C
- Degree of protection: suitable for installation in the control cabinet (no water/dust resistance)

6. Application Scenarios
- Suitable for automated control systems that require high-precision analog acquisition, such as:
- Industrial process control (temperature, pressure, flow monitoring)
- Servo motor feedback signal acquisition
- Production line data monitoring

7. Supporting Support
- It can be used with Mitsubishi Q series and FX series PLCs, and supports CC-Link bus communication.
- Programming software support for module parameter configuration and data reading.

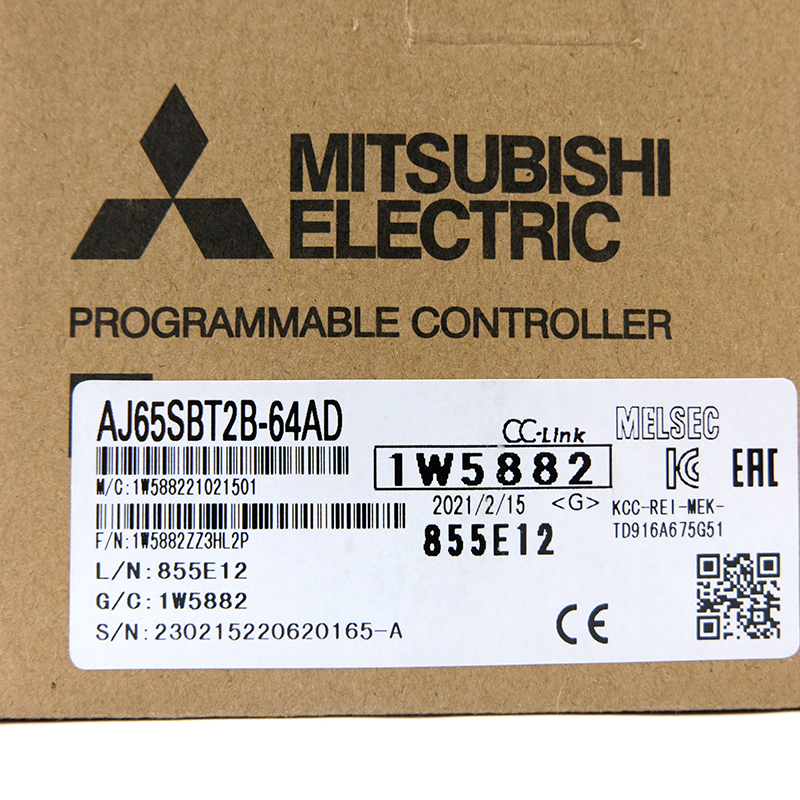

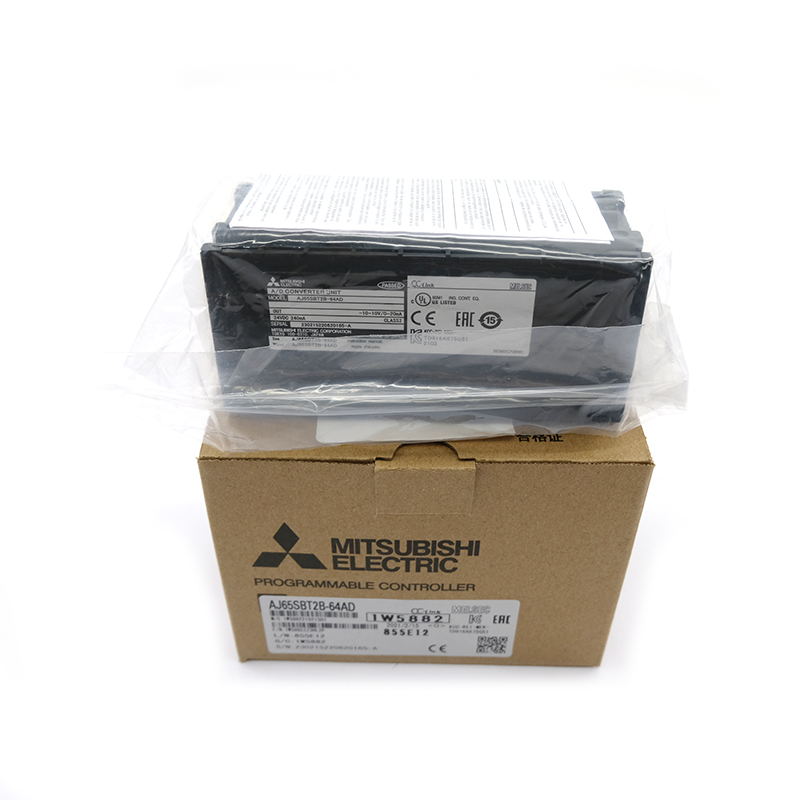

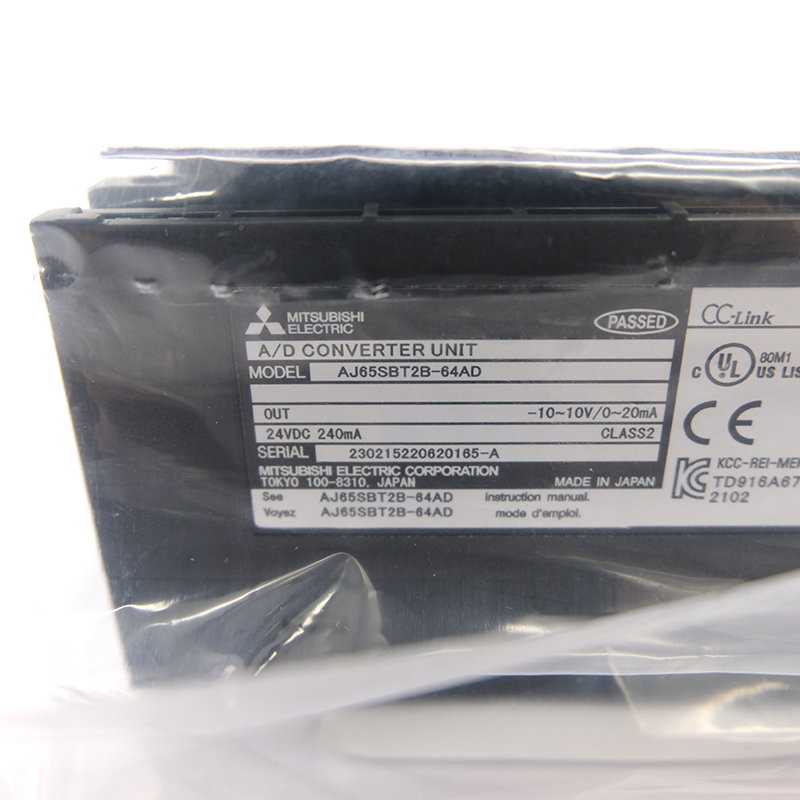

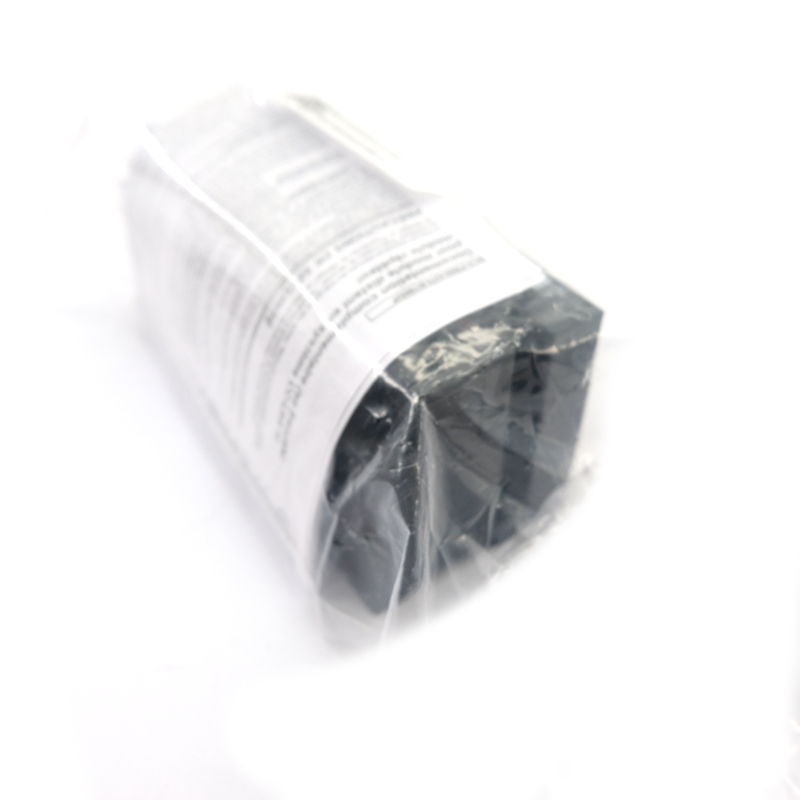

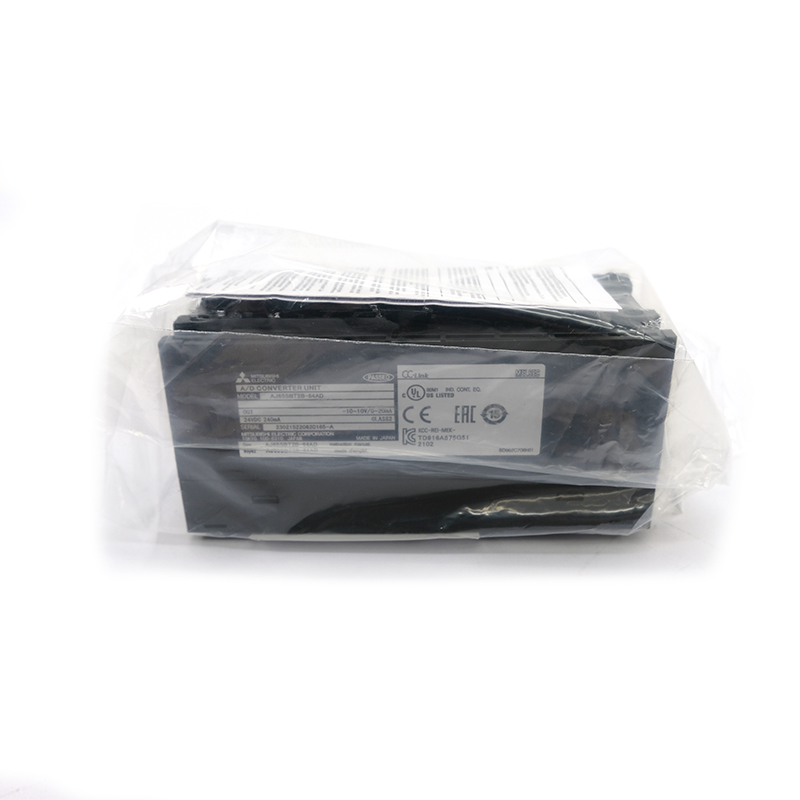

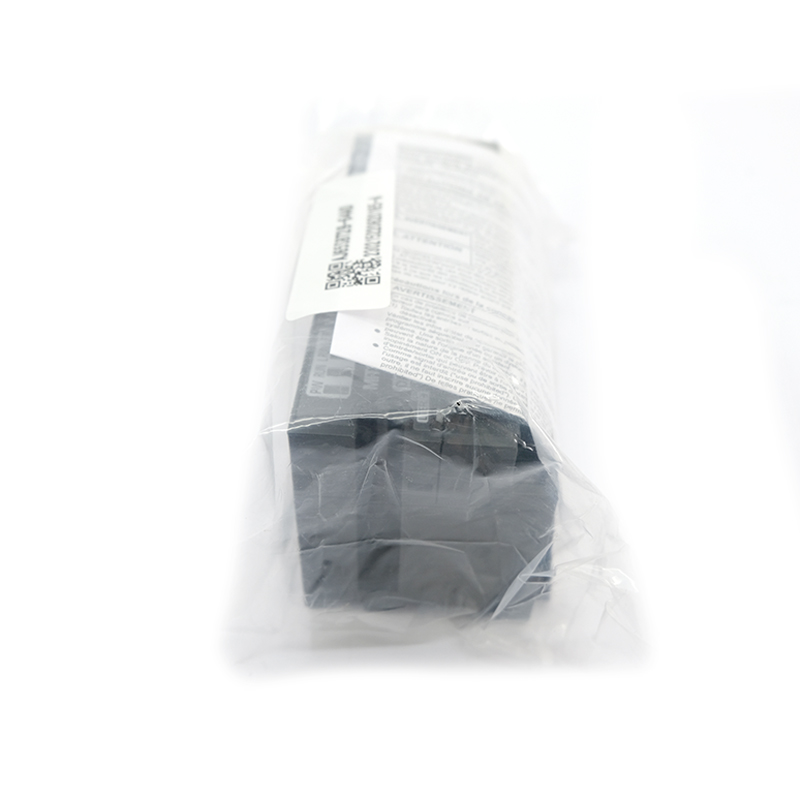

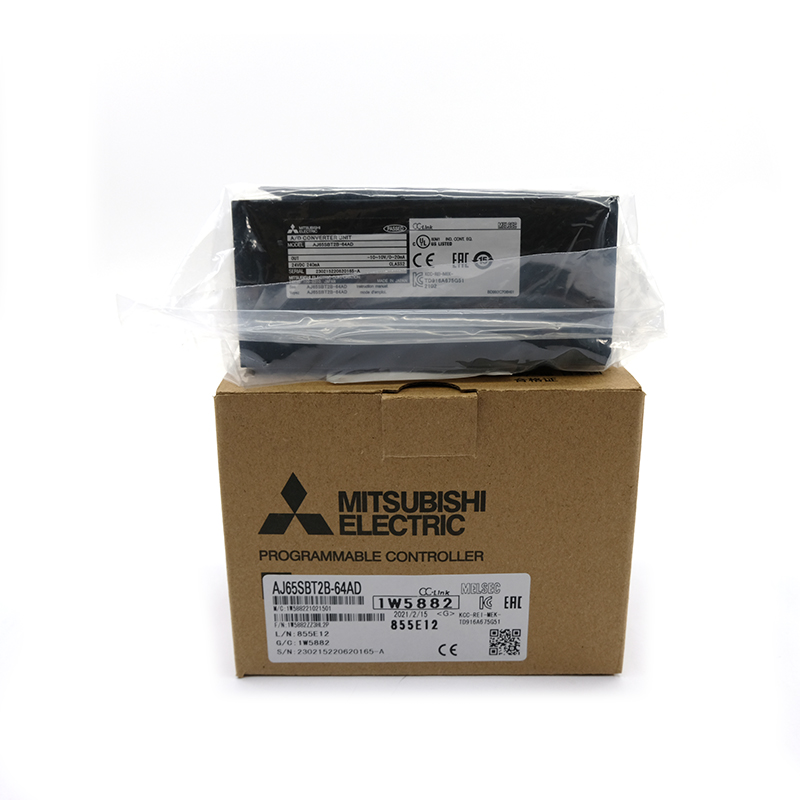

Details of Mitsubishi AJ65SBT2B-64AD
